Flat-Top Single-Door Display Cabinet

Flat-Top Single-Door Display Cabinet — 450L Commercial Glass Door Chiller | Model LC-450 / LC-450F

Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
LC-450 / LC-450F

Flat-Top Single-Door Display Cabinet

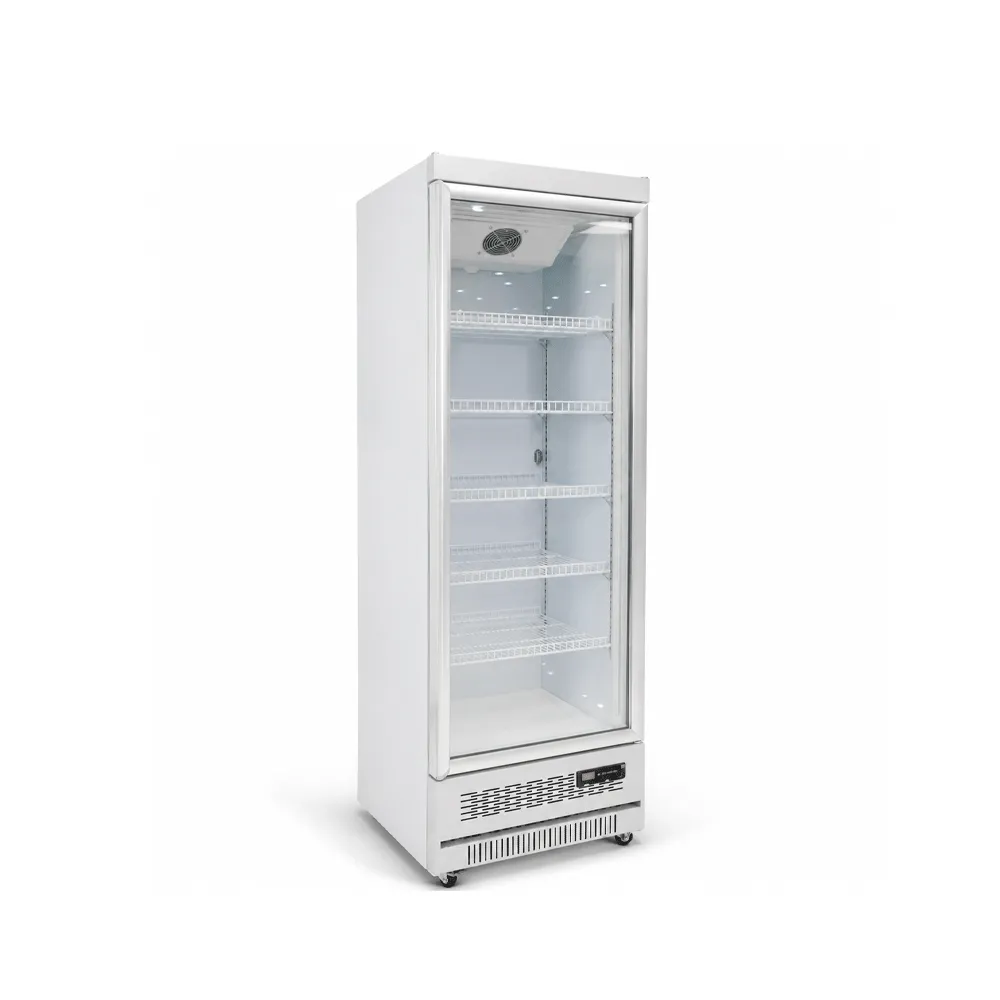

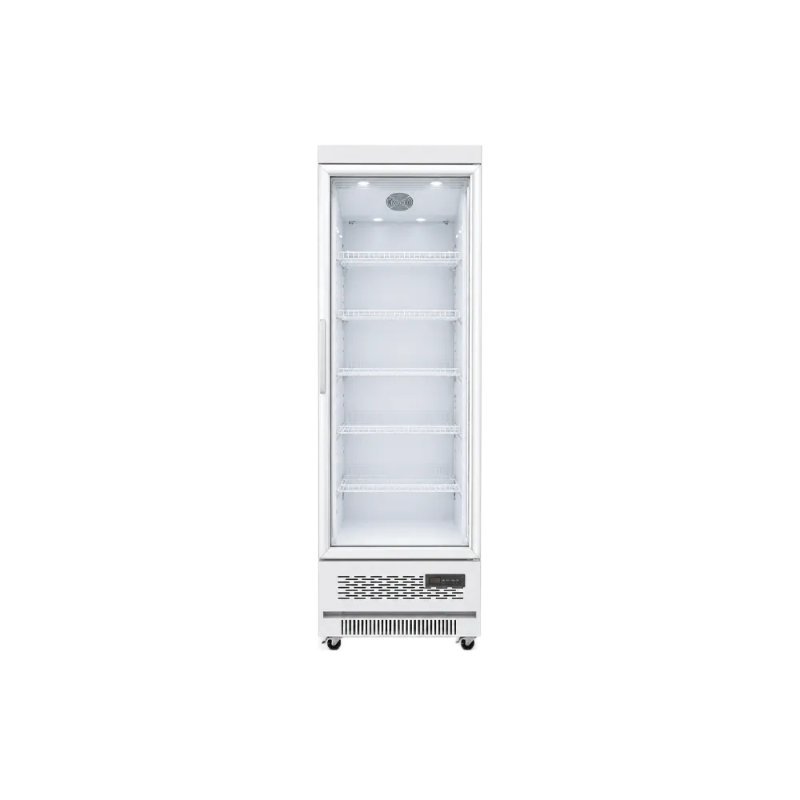

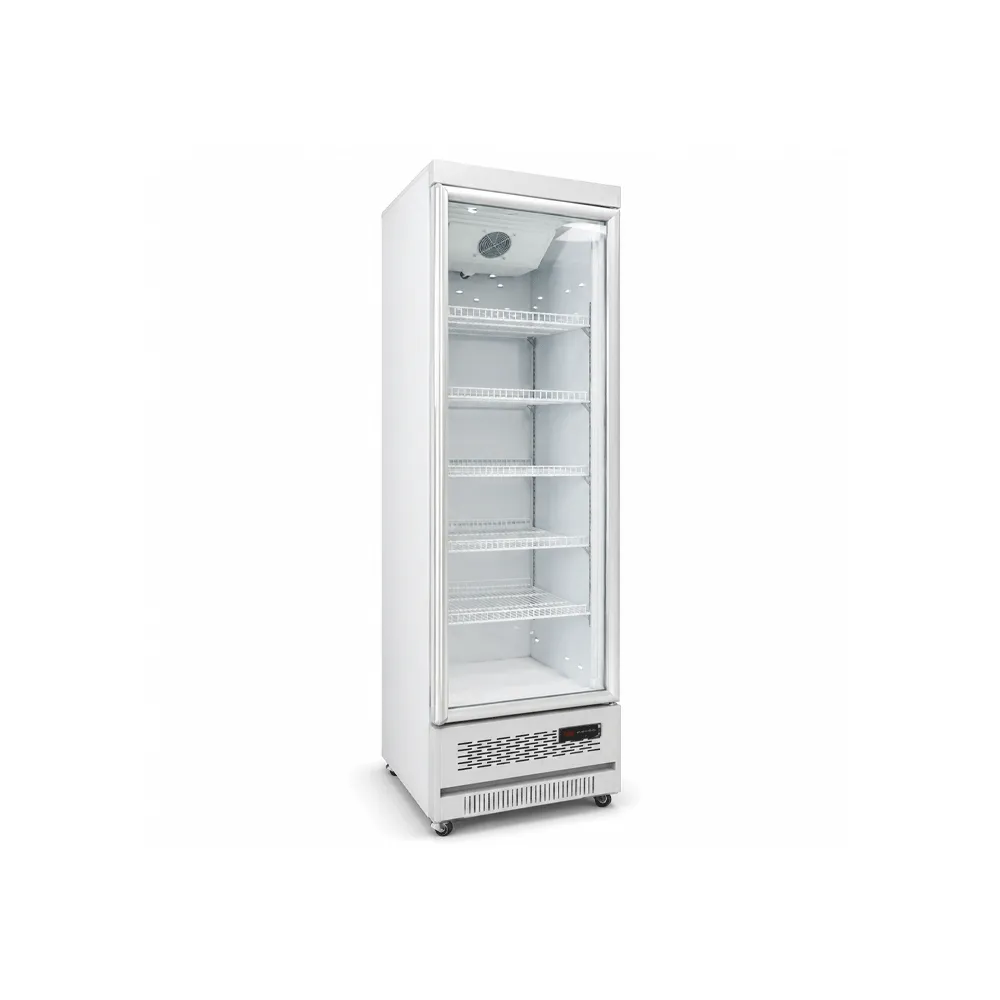

The flat-top single-door display cabinet LC-450 is a slim-footprint, large-capacity upright glass door chiller engineered for commercial food and beverage refrigeration. Maintaining a stable compartment temperature of +2°C to +8°C with a 450L internal volume, this unit is designed to deliver consistent chilled storage and front-facing product visibility in a compact floor space — making it particularly well-suited to hotels, canteens, restaurants, convenience stores, and supermarkets where both storage efficiency and display clarity are operational priorities.

  • Product Dimensions:

    600 × 680 × 2030 mm

  • Brand:

    KONSINE

  • Capacity:

    450 L

  • Configuration:

    Static Cooling — LC-450 / Fan Cooling — LC-450F

Get Free Quote

Core Product Advantages

Flat-Top Single-Door Display Cabinet

Product features and technical means

Flat-Top Cabinet Structure
The LC-450 adopts a flat-top upright cabinet format, offering a clean and space-efficient silhouette that integrates neatly into commercial interior layouts — including checkout areas, buffet corridors, back-of-counter positions, and retail aisle end-caps.

Cabinet Housing and Insulation
The outer enclosure is available in white or black color-coated board finish, providing a professional appearance suitable for both food service and retail environments. The cabinet body uses full-foam insulation construction, delivering excellent thermal retention to minimize compressor cycling frequency and support stable internal temperature under ambient operating conditions.

Refrigeration System — Two Model Variants

LC-450 (Static Cooling ): Cold air is distributed evenly through natural convection within the sealed cabinet environment. This system operates with low noise and low vibration, making it well-suited to quiet commercial environments such as hotel dining areas, café counters, and office canteens.
LC-450F (Fan Cooling ): A built-in fan actively circulates cold air throughout the cabinet interior, enabling faster temperature recovery after door openings. Recommended for higher-traffic environments such as convenience stores, supermarket aisles, and busy restaurant service areas.

Temperature Control
Both models maintain an internal compartment temperature range of +2°C to +8°C, covering the standard fresh food and beverage chilling range required by food safety and storage protocols in commercial food service and retail operations.

Door Design
The single full-height glass door provides a clear view of stored products from the front without requiring the door to be opened for browsing. The sealed door design minimizes cold air escape during customer browsing periods.

Shelf System
Interior shelves use laminated impregnated plastic construction, which is moisture-resistant, structurally durable, and easy to wipe clean. Shelf height is adjustable to accommodate varying product heights and packaging configurations, giving operators flexibility in product arrangement and rotation.

Mobility and Floor Stability
Removable casters at the base allow the unit to be relocated within a store or venue layout without requiring tools. Adjustable leveling feet can be deployed in place of the casters to ensure stable, level placement on uneven commercial floor surfaces.

Power SpecificationLC-450: Rated Power 208W at 220V / 50Hz
LC-450F: Rated Power 190W at 220V / 50Hz

Technical parameters

Flat-Top Single-Door Display Cabinet
Parameter Specification
Product Name Flat-Top Single-Door Display Cabinet
Model LC-450 / LC-450F
Capacity 450 L
Product Dimensions (W×D×H) 600 × 680 × 2030 mm
Temperature Range +2°C to +8°C
Rated Voltage / Frequency 220V / 50Hz
Rated Power 208W (LC-450 — Static Cooling) / 190W (LC-450F — Fan Cooling)
Refrigerant R290
Cooling System Static Cooling — LC-450 / Fan Cooling — LC-450F
Door Type Single Full-Height Glass Door
Cabinet Finish White or Black Color-Coated Board
Insulation Full-Foam Construction
Shelf Type Adjustable Laminated Impregnated Plastic Shelf
Mobility Removable Casters + Adjustable Leveling Feet
Net Weight / Gross Weight 72 kg / 77 kg
OEM / ODM  Available — confirm requirements before order











Download Details

Lifestyle Scene

Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet
Flat-Top Single-Door Display Cabinet

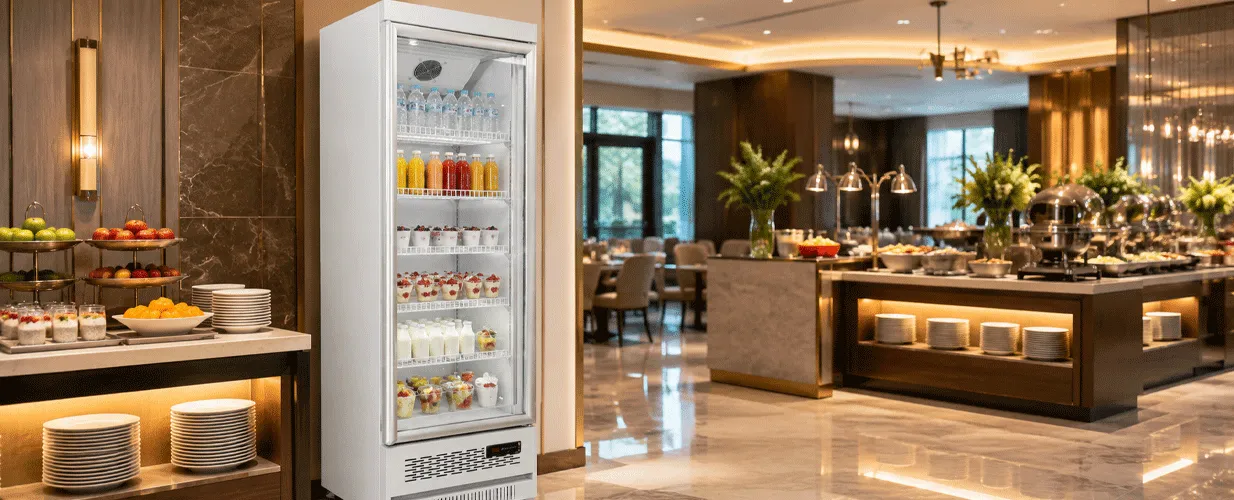

  • Hotel — Buffet & Dining Area

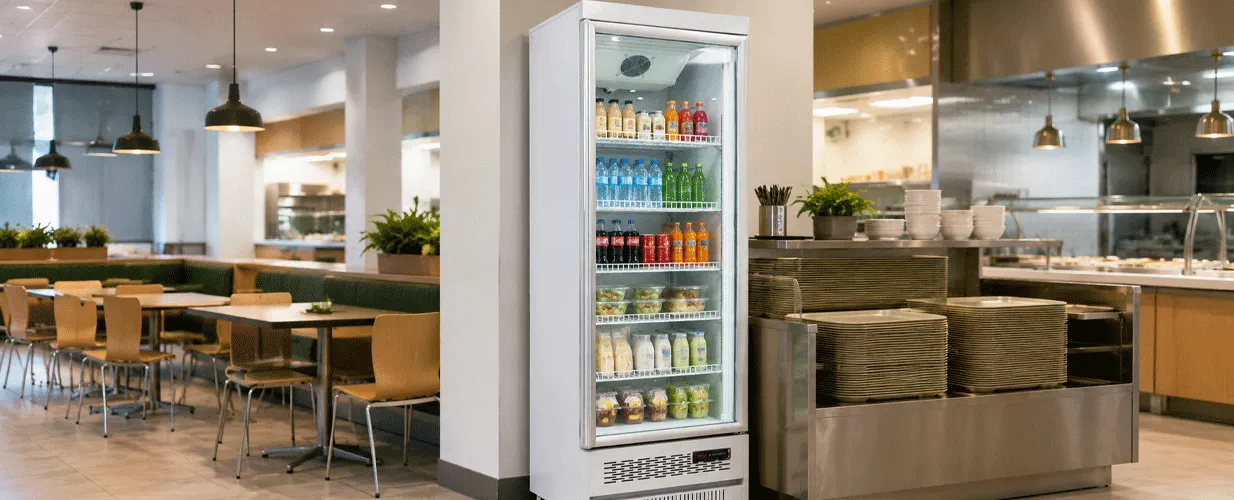

  • Restaurant & Canteen

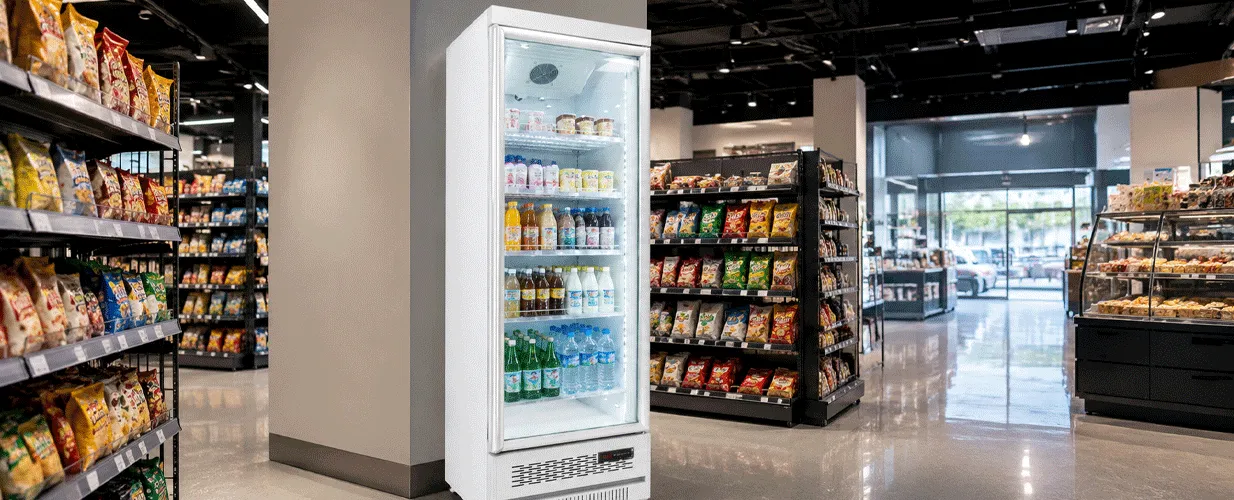

  • Supermarket & Retail Chain

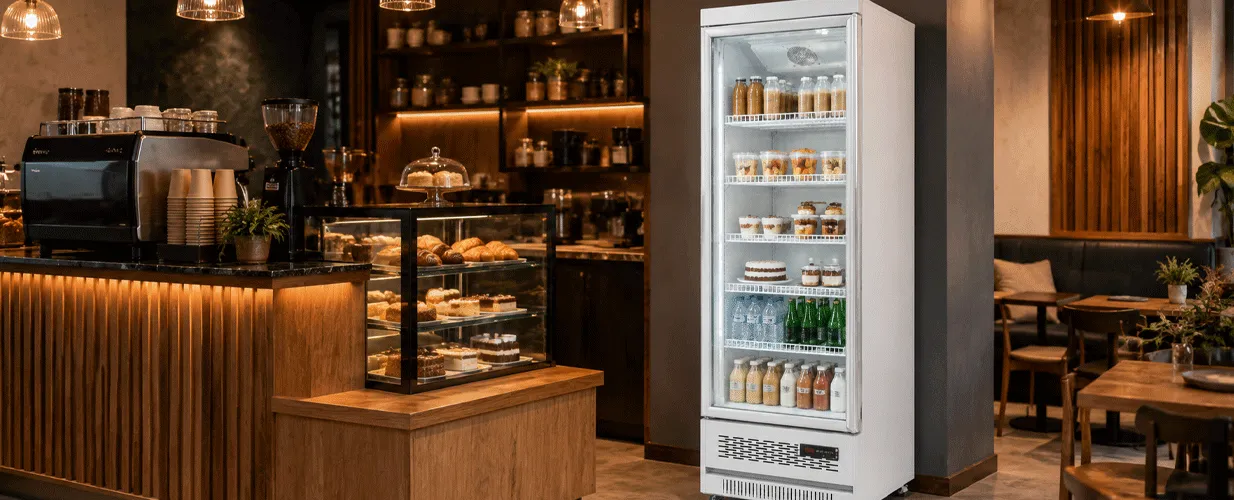

  • Café & Beverage Shop

Reliable Production & Quality Control

  • Efficient Production

    Kexu Electric Appliance Co., Ltd. has operated its own manufacturing facility since 1995, accumulating more than 30 years of production experience across household appliances and commercial refrigeration display equipment. The company’s production setup includes modern assembly lines, injection molding machines, testing instruments, and supporting production equipment, enabling consistent manufacturing output across standard and customized product configurations. Sample confirmation before mass production is supported as a standard part of the B2B cooperation process, allowing buyers to verify product quality and configuration accuracy before committing to full-volume orders.

  • Strict Quality Control

    Kexu Electric maintains a dedicated quality inspection department staffed by trained QC personnel. Quality control procedures are applied across multiple production stages, including incoming material inspection, in-process production monitoring, functional and operational testing of refrigeration and electrical systems, final product inspection before packaging, and pre-shipment review. This structured inspection process is designed to maintain consistent product quality across production batches and reduce defect rates for overseas commercial and retail buyers. Buyers may request documentation or QC process details during pre-order communication.

  • OEM & ODM Service

    Kexu Electric supports OEM and ODM customization for the Flat-Top Single-Door Display Cabinet and other commercial refrigeration and household appliance products. Available customization directions include:

    Appearance: Cabinet color and surface finish (white, black, or custom color)
    Branding: Custom logo, model label, and private label or brand name placement
    Packaging: Export carton marking, packaging material specification, and labeling to buyer or retailer specification
    Configuration: Voltage and frequency adjustment for destination market electrical standards; cooling system type selection (static LC-450 or fan-assisted LC-450F)
    Structural: Interior shelf quantity, height, and arrangement configuration
    Function: Door lock, interior lighting upgrade, temperature controller type, or additional feature integration based on buyer specification
    Buyers are encouraged to share drawings, reference products, target market requirements, or branding guidelines for feasibility evaluation before order placement.

  • Global Export Experience

    Kexu Electric supports international B2B order coordination for the LC-450 and LC-450F single-door display cabinet and other commercial refrigeration products. Given the unit’s physical dimensions (600×680×2030mm) and weight profile (72kg net / 77kg gross), export packaging is prepared with reinforced carton construction, appropriate internal cushioning, corner and edge protection, and pallet-ready packaging suited to container and LCL freight. Carton marking, documentation preparation, and packaging specification can be aligned with buyer requirements based on destination market and logistics arrangement. For project orders involving multiple units or mixed product configurations, shipment planning and documentation coordination can be discussed during pre-order communication.

Global Shipping Support

We support sea freight, railway transportation, and international logistics solutions for customers worldwide. Our experienced team ensures efficient loading, stable delivery schedules, and professional export handling.

Frequently Asked Questions

Everything you need to know before placing an order or starting a long-term partnership with us.

  • What is the Flat-Top Single-Door Display Cabinet LC-450 used for?

    The LC-450 flat-top single-door display cabinet is a commercial upright glass door chiller designed for refrigerated food and beverage storage and display in hotels, restaurants, canteens, supermarkets, convenience stores, and cafés. With a 450L internal capacity and a maintained temperature range of +2°C to +8°C, it is suited to storing and front-displaying beverages, dairy products, packaged fresh food, desserts, and prepared food items in single-unit or multi-unit commercial configurations.

  • What is the difference between the LC-450 and the LC-450F, and which should I choose?

    The LC-450 uses a static cooling system that operates quietly with even natural-convection temperature distribution — recommended for lower door-opening frequency environments such as hotel dining areas, office canteens, and café counters. The LC-450F uses fan-assisted cooling that actively circulates cold air for faster temperature recovery after door openings — recommended for higher-traffic environments such as convenience stores, supermarket aisles, and busy restaurant service floors where the door is opened frequently throughout operating hours. Buyers should select based on the expected door-opening frequency of their intended commercial environment.

  • Can the branding, color, configuration, or voltage be customized for this display cabinet?

    Yes. Kexu Electric supports OEM and ODM customization for this product. Buyers can request adjustments to cabinet color and surface finish, logo and brand name placement on the cabinet body or door frame, packaging design and export carton marking, voltage and frequency specification for target market electrical standards (the standard configuration is 220V/50Hz), interior shelf arrangement, and additional functional features such as door locks or upgraded interior lighting. Customization feasibility can be evaluated based on buyer-provided specifications, drawings, or reference samples. Sample confirmation before mass production is available.

  • What should buyers confirm before placing a bulk order for the LC-450 series?

    Before placing an order, buyers are recommended to confirm the following: destination market voltage and frequency standard (standard configuration is 220V/50Hz); preferred cooling system — static (LC-450) or fan-assisted (LC-450F) — based on intended environment and door-opening frequency; local regulatory requirements for R290 refrigerant commercial equipment; OEM/ODM branding, color, and packaging requirements; required order quantity; and whether a pre-production sample confirmation is needed before mass production is arranged. Buyers with specific installation environments or venue types are encouraged to share these details during pre-order communication so the most suitable model and configuration can be confirmed.

  • Does the factory support OEM / ODM cooperation and bulk B2B orders for commercial display refrigerators?

    Yes. Kexu Electric is a factory-direct manufacturer with more than 30 years of household appliance and commercial refrigeration equipment production experience. The company supports bulk B2B orders and OEM/ODM cooperation for commercial display cabinet buyers including importers, supermarket chain buyers, hotel and restaurant procurement teams, food service project buyers, and private-label brand owners. Sample confirmation before mass production, multi-stage QC inspection, and dedicated export and after-sales support are included as standard components of the B2B cooperation process. Buyers are welcome to contact us with product requirements, target quantity, destination market, and customization details to begin the sourcing discussion.
