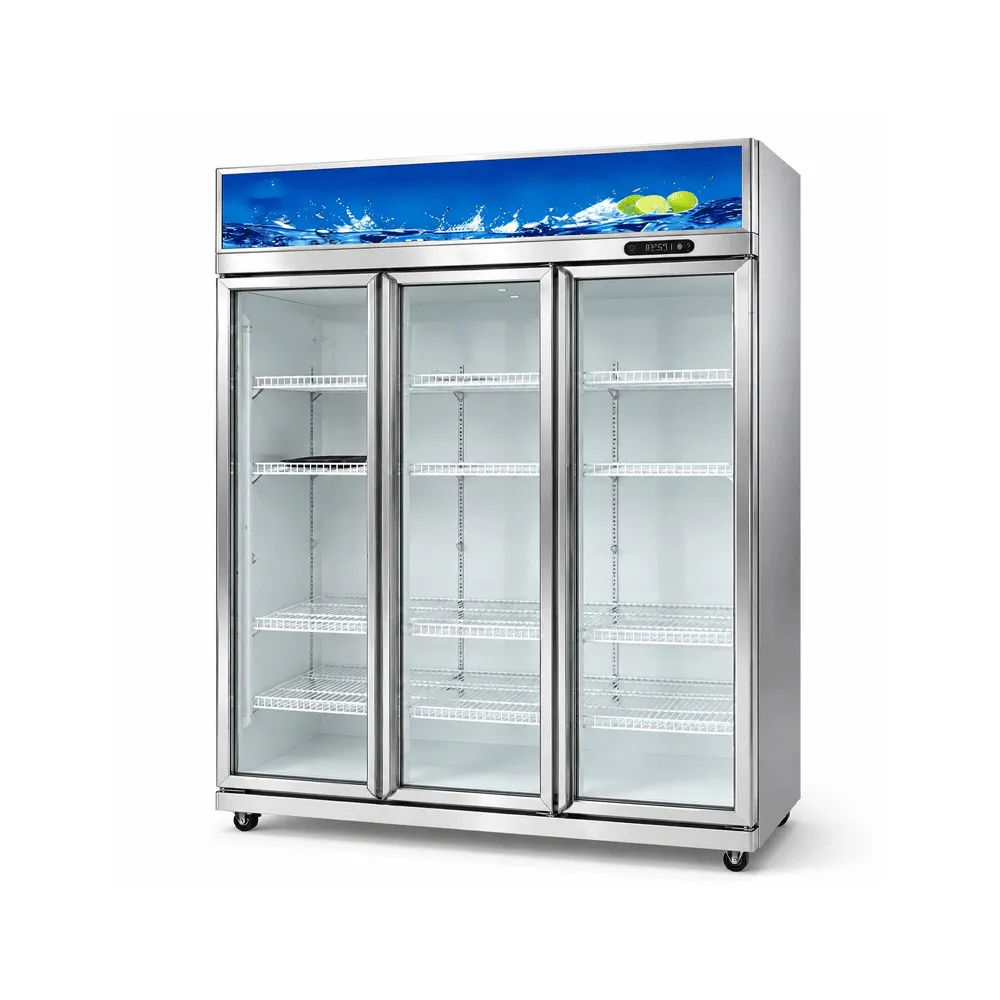

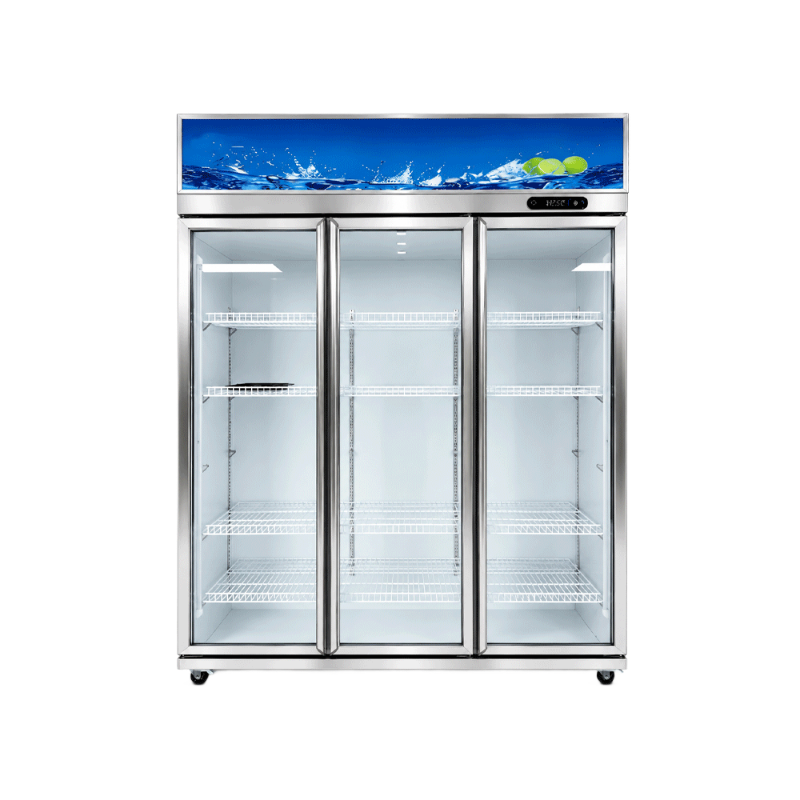

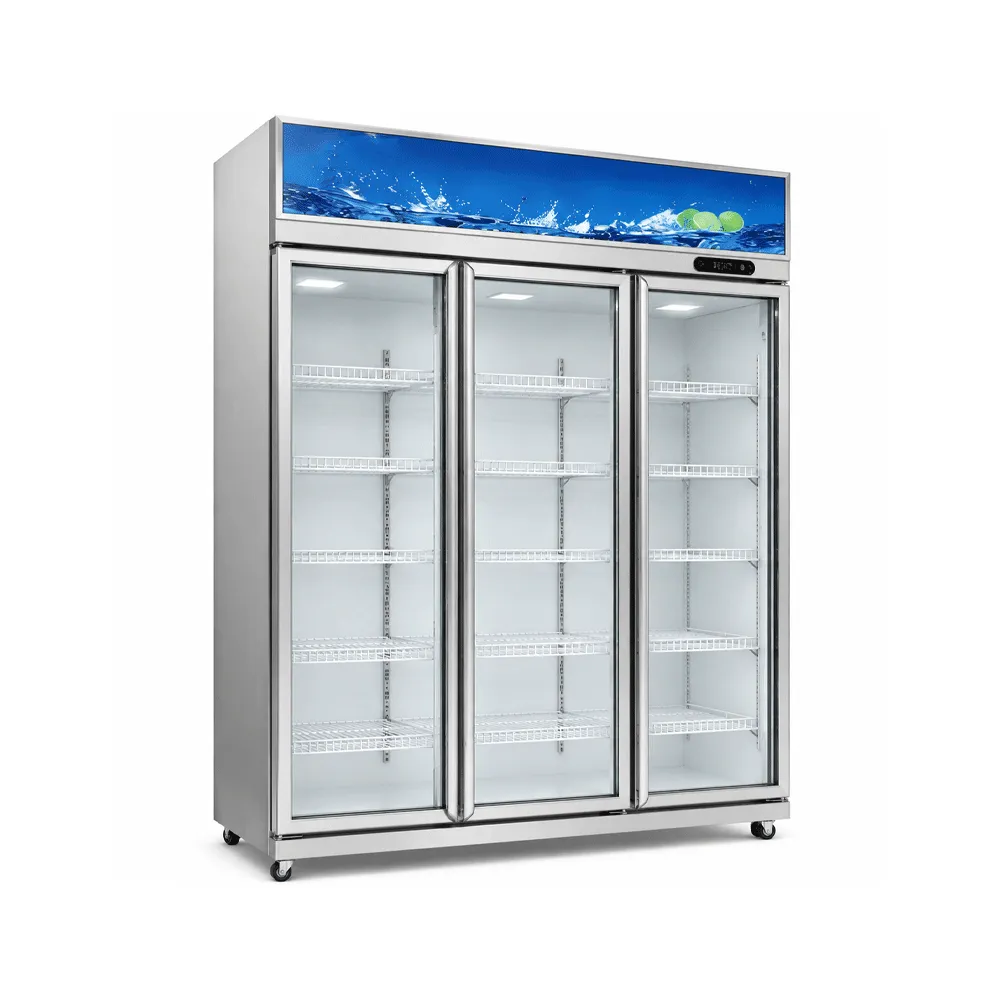

Three-Door Commercial Display Refrigerator

Three-Door Commercial Display Refrigerator — 1417L Upright Glass Door Chiller | Model LC-1863

Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
LC-1863

Three-Door Commercial Display Refrigerator

The 3-door commercial display refrigerator LC-1863 is a large-capacity upright chiller designed for food and beverage display in high-traffic commercial environments. With a 1417L storage volume, full-glass door panels, and a temperature range of +2°C to +8°C, this unit delivers consistent cold-chain performance for hotels, canteens, restaurants, and supermarkets that require reliable refrigerated storage and front-facing product presentation simultaneously.

  • Product Dimensions:

    1800 × 630 × 2030 mm

  • Brand:

    KONSINE

  • Capacity:

    1417 L

  • Configuration:

    Static Cooling / Fan Cooling— Model LC-1863F

Get Free Quote

Core Product Advantages

Three-Door Commercial Display Refrigerator

Product features and technical means

Cabinet Structure and Housing
The outer enclosure uses a black color-coated board finish, providing a clean, professional appearance suitable for retail and food service environments. The full-foam cabinet construction delivers excellent thermal insulation, reducing compressor workload and supporting stable internal temperature maintenance.

Refrigeration System
The LC-1863 uses a static cooling  system that provides quiet operation and even temperature distribution suited to packaged food and beverage storage. The LC-1863F variant incorporates fan-assisted cooling , which circulates cold air more rapidly throughout the cabinet interior, supporting faster temperature recovery after door openings in high-traffic commercial settings.

Temperature Control
The cabinet maintains an internal compartment temperature of +2°C to +8°C, covering the standard fresh food and beverage refrigeration range required by hotels, restaurants, canteens, and supermarkets for perishable product storage and display.

Door Design
Three full-height glass door panels allow clear front-facing product visibility while maintaining the sealed cold environment. The glass door construction reduces the need for customers to open the cabinet during product selection, minimizing cold air loss and improving operational energy efficiency.

Shelf System
Interior shelves use laminated impregnated plastic construction, which is moisture-resistant, easy to clean, and durable under commercial use conditions. Shelf height is adjustable to accommodate different product sizes and display configurations.

Mobility and Installation
Removable casters allow the unit to be repositioned within a store or facility layout. Adjustable leveling feet provide stable placement on uneven floor surfaces, which is a practical consideration for commercial kitchens, canteens, and retail environments.

Refrigerant
The unit uses R290 (propane-based) refrigerant, which is widely accepted in environmentally regulated markets due to its low GWP profile. Buyers should confirm local regulatory requirements for R290-refrigerant equipment in their target market before ordering.

Technical parameters

Three-Door Commercial Display Refrigerator
Parameter Specification
Product Name Three-Door Commercial Display Refrigerator
Model LC-1863 / LC-1863F
Capacity 1417 L
Product Dimensions (W×D×H) 1800 × 630 × 2030 mm
Temperature Range +2°C to +8°C
Rated Voltage / Frequency 220V / 50Hz
Rated Power 325W (LC-1863) / 366W (LC-1863F)
Refrigerant R290
Cooling System Static Cooling (LC-1863) / Fan Cooling (LC-1863F)
Door Type 3-Door Full-Height Glass Door
Cabinet Finish Black Color-Coated Board
Insulation Full-Foam Construction
Shelf Type Adjustable Laminated Impregnated Plastic Shelf
Mobility Removable Casters + Adjustable Leveling Feet
Net Weight / Gross Weight 132 kg / 143 kg
Application Hotel, Canteen, Restaurant, Supermarket, Food Retail
OEM / ODM Available-confirm requirements before order









Download Details

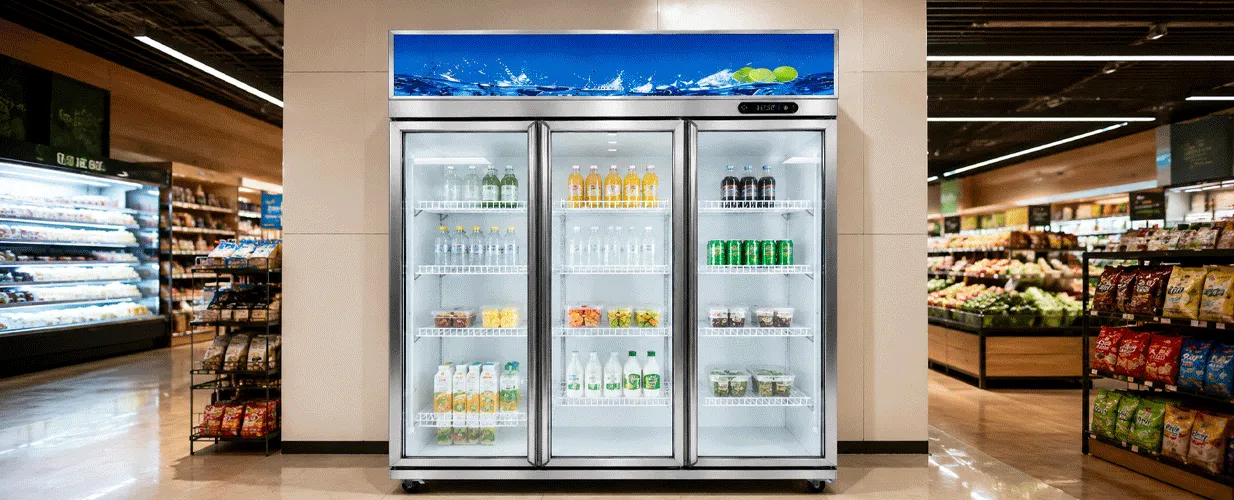

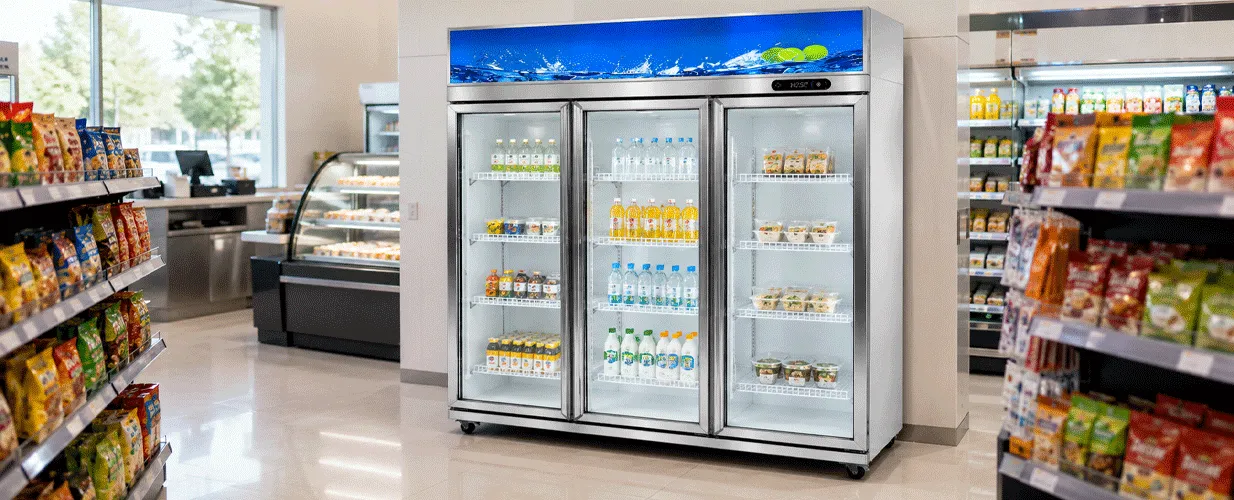

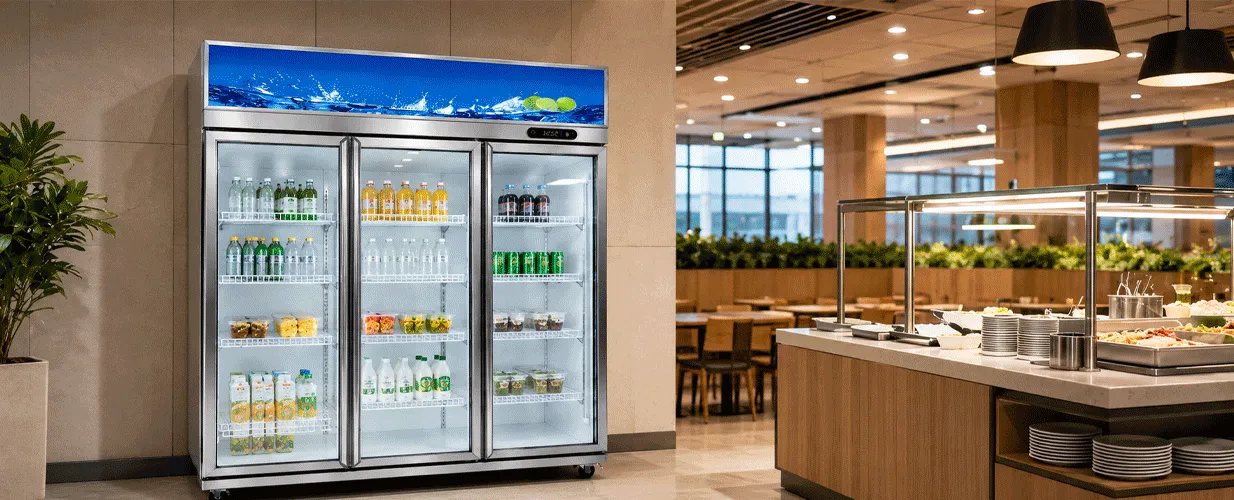

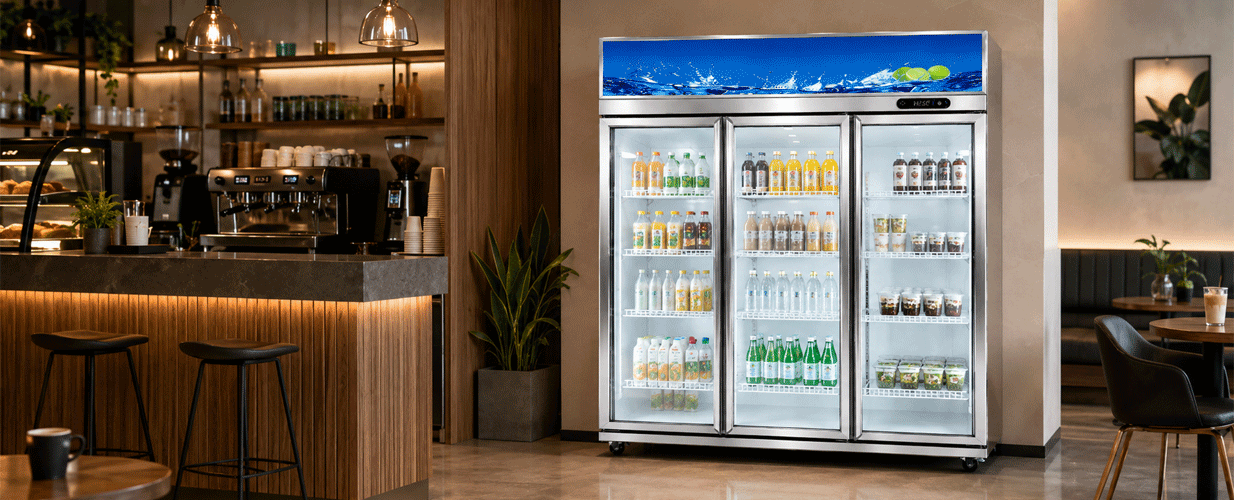

Lifestyle Scene

Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
Three-Door Commercial Display Refrigerator
  • Supermarket
  • Restaurant & Canteen
  • Café & Beverage Shop
  • Convenience Store

Reliable Production & Quality Control

  • Efficient Production

    Kexu Electric Appliance Co., Ltd. operates its own manufacturing facility with modern assembly lines, injection molding machines, testing instruments, and supporting production equipment. Established in 1995, the company has accumulated more than 30 years of production experience across household appliances and commercial refrigeration equipment. The in-house production setup supports stable output quality, consistent product structure, and reliable coordination for bulk commercial orders. Sample confirmation before mass production is available, allowing buyers to verify product quality and configuration before committing to full-volume procurement.

  • Strict Quality Control

    Kexu Electric maintains a dedicated quality inspection department staffed by trained QC personnel. Quality control procedures cover incoming material inspection, in-process production monitoring, functional testing of refrigeration and electrical systems, final product inspection before packaging, and shipment preparation review. This multi-stage inspection process is designed to maintain consistent product quality across production batches and reduce defect rates for overseas B2B buyers. Specific testing records and inspection documentation can be discussed during pre-order communication.

  • OEM & ODM Service

    Kexu Electric supports OEM and ODM customization for the Three-Door Commercial Display Refrigerator and other products in its commercial refrigeration and household appliance range. Available customization directions include:

    Appearance: Cabinet color, surface finish, door frame design
    Branding: Custom logo placement, label design, private label and brand name support
    Packaging: Export carton marking, packaging material, and labeling to buyer specification
    Configuration: Voltage and frequency adjustment for destination market electrical standards, cooling system type selection (static or fan), shelf quantity and arrangement
    Structural: Size or capacity adjustments based on target venue or floor space requirements
    Function: Interior lighting, temperature controller type, or additional feature integration based on buyer requirements
    Buyers are encouraged to provide drawings, reference samples, target market requirements, or branding specifications for feasibility evaluation prior to order placement.

  • Global Export Experience

    Kexu Electric has more than 20 years of international exhibition experience, including consistent participation in the Canton Fair, Hong Kong exhibitions, and overseas trade events. The company serves a global B2B customer base comprising household appliance importers, commercial equipment distributors, supermarket chain buyers, hospitality procurement teams, e-commerce sellers, and OEM/ODM brand owners. Products are exported to markets in Europe, America, the Middle East, Southeast Asia, Africa, South America, and other regions. Pre-sales communication, sample support, production follow-up, QC coordination, and after-sales handling are provided as standard components of the B2B cooperation process.

Global Shipping Support

We support sea freight, railway transportation, and international logistics solutions for customers worldwide. Our experienced team ensures efficient loading, stable delivery schedules, and professional export handling.

Related Products

Frequently Asked Questions

Everything you need to know before placing an order or starting a long-term partnership with us.

  • What is the Three-Door Commercial Display Refrigerator LC-1863 used for?

    The LC-1863 is a large-capacity upright commercial display refrigerator designed primarily for hotels, canteens, restaurants, supermarkets, and convenience stores that require refrigerated storage and front-facing product display in a single unit. With a 1417L internal volume, full-glass door panels, and a maintained temperature of +2°C to +8°C, it is suited to storing and displaying beverages, dairy products, packaged fresh food, and prepared food items in high-traffic commercial environments.

  • What is the difference between the LC-1863 and the LC-1863F model?

    The LC-1863 uses a static cooling system , which operates quietly and provides even temperature distribution — suitable for lower door-opening frequency environments. The LC-1863F uses fan-assisted cooling , which circulates cold air more actively throughout the cabinet interior for faster temperature recovery after door openings — recommended for high-traffic environments such as busy supermarkets, canteens, or self-service buffet lines where the doors are opened frequently throughout the day.

  • Can the size, color, branding, or configuration of this display refrigerator be customized?

    Yes. Kexu Electric supports OEM and ODM customization for this product. Buyers can request adjustments to cabinet color and surface finish, logo and brand name placement, packaging design and carton marking, voltage and frequency specification for target market electrical standards, shelf configuration, and interior or exterior feature adjustments. Customization feasibility can be evaluated based on buyer-provided drawings, reference samples, or specification requirements. Sample confirmation before mass production is available.

  • What should buyers confirm before placing an order for the LC-1863?

    Before ordering, buyers are recommended to confirm the following: destination market voltage and frequency standard (this unit is rated 220V/50Hz and may require configuration adjustment for other markets); preferred cooling system type (static LC-1863 or fan-assisted LC-1863F); local regulatory requirements for R290 refrigerant commercial equipment; OEM/ODM branding, color, and packaging requirements; order quantity and whether a pre-production sample is required; and intended commercial application to ensure the 1417L three-door configuration matches the venue’s space and capacity needs.

  • Does the factory support bulk B2B orders and OEM/ODM cooperation for commercial refrigeration equipment?

    Yes. Kexu Electric is a factory-direct manufacturer with more than 30 years of household appliance and commercial equipment production experience. The company supports bulk B2B orders from commercial equipment importers, supermarket chain buyers, hospitality procurement teams, food service project buyers, and OEM/ODM brand owners. Sample confirmation before mass production, multi-stage QC inspection, and dedicated after-sales support are included as standard components of the cooperation process. Buyers are welcome to contact us with their product requirements, target quantity, destination market, and customization details to begin the sourcing discussion.
